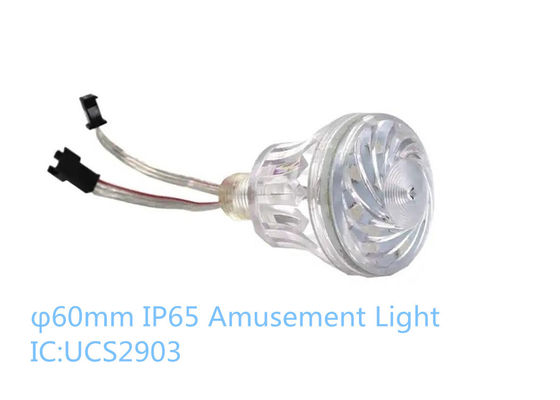

DC24V 360° 60mm Outdoor Waterproof Amusement Turbo Shell Led Cabochon Bulb For Funfair Lighting
Product details,
| Product name | 60mm diameter funfair park lighting pixel lamp |
| Model | PS-D6018-UCS2903 |
| IC/ protocol | UCS2903 |
| LED chip/ channel | RGB 3channels |
| Lighting degree | 360 degree lighting |
| IP grade | IP65 |
| Plugs | 3pin waterproof/ nonwaterproof JST SM plugs |
| Cable spacing | 15cm cable length |
| Cable color | Transparent, black optional |
| Component | 19mm hole hex nut for fixation |
Features:
Control IC: Each of the 18 pixels contains a UCS2903 chip for precise individual control.
Waterproofing: Two options are available: an IP20 version (for indoor use) with JST connectors, or a highly waterproof IP65 version featuring filled silicone glue and robust connectors.
Power Supply: Must be powered by a 24V DC source. Important: Exceeding this voltage will irreparably damage the pixels.

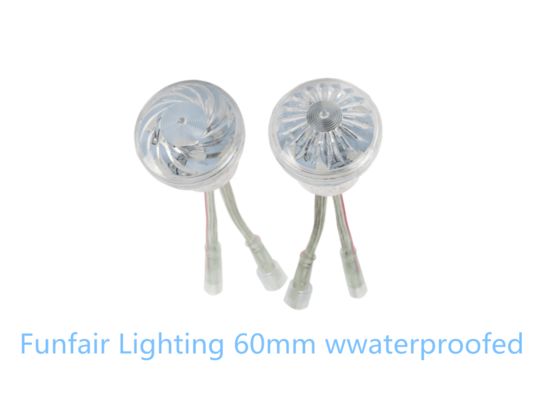

Cover Design: Select from a 60mm spiral cover or a faceted diamond cover to achieve the desired aesthetic and light diffusion pattern.
Connectors: Utilizes 3-pin waterproof connectors for secure and easy daisy-chaining. The pin configuration is: Data (DAT), +24V Power (DC24V+), and Ground (GND-).
Key Advantages: This product delivers exceptional performance characterized by high luminous intensity, very low energy consumption, a long operational life, minimal attenuation over time, and superb color rendering.
Creative Applications: Flexible installation techniques enable the creation of countless dynamic and captivating lighting displays.
Demension:
Main features ,
Clear PC Shell
60mm diameter
18pcs SMD5050
Application:
- Stage video elements for intimate or large concert productions
- Interior design for clubs, coffee / wine bars, shopping malls, museums,themed envirnments
- Exhibitions stands, advertising,Led screen
- Garden square green trees
- Architectural lights for corridor, canopy, archway, lights
- Commercial lighting in public places such as square and amusement park
